The CO2 laser has dominated industry in the past. However, this trend could not prevail because fiber laser technology has been on the advance for many years. Your existing machinery is usually still in good condition, but has deficits in its core technology. This is why we start and replace the laser source and the laser head as well as other components and can then use the many advantages of fiber laser technology in the existing system.
Retrofit Advantages
No Change in local conditions;
No Change control system;
Significantly less maintenance;
No Need laser gas (He, CO2, N2);
Electricity cost reduction by around 50%;
Faster cuts in the thinner area up to 400%;
Maintenance times are reduced;
Keep cutting process parameteres;
Cutting reflective metals, copper, brass;
Maintenance costs saved on average around 40,000 euros per year;
Retrofit Solution
We will install the new fiber laser source, fiber laser cutting head, cooling machine, drag chain, interface controller system and other devices on the original Bystronic CO2 laser cutting machine. This solution will retain the advantages of the Bystronic machine, such as excellent dynamic performance, high precision, easy operation, convenient maintenance and so on. We will solve the high maintenance charge of original carbon laser source issues with our technology.
Bystronic Retrofit Recommendation
Byjin/Bysprint3015 retrofit with 2KW, 3KW, 6KW ;
Byjin/Bysprint4020 retrofit with 3KW, 6KW, 12KW;
Bystar3015/4020/4025L-60/80/120 retrofit with 6KW, 12KW;
Byspeed3015/4020 retrofit with 3KW, 6KW;
Byvention3015 retrofit with 3KW;
…
We can achive all Bystronic machine retrofit, including CNC96, CNC02 system. And we have all standard installation kits for Bysprint, Bystar, Byspeed machine. You can give your Bystronic machine second life with our solution.
Why you choose our solution?
1, We developed Bystronic machine retrofit solution in 2019, and the first machine is running with our system with 3 years. There are more than 150 sets machine running with our system in China and around 30 sets machine abroad. (As of 2022.7.20);
2, We build global maintainence service and stock center in our Partner factory. We provide 1 new Fiber laser source and stock controller system in EU to solve the fiber source shutdown issues.
3, We have many partner to work with us in the world, and they are professional with Bystronic maintainence, cutting process. Also we can provide CNC spare parts for them.
4, Customer can get return quickly with our solution, It’s the best investment for their Bystronic machine.
Fiber Laser Cutting Ability

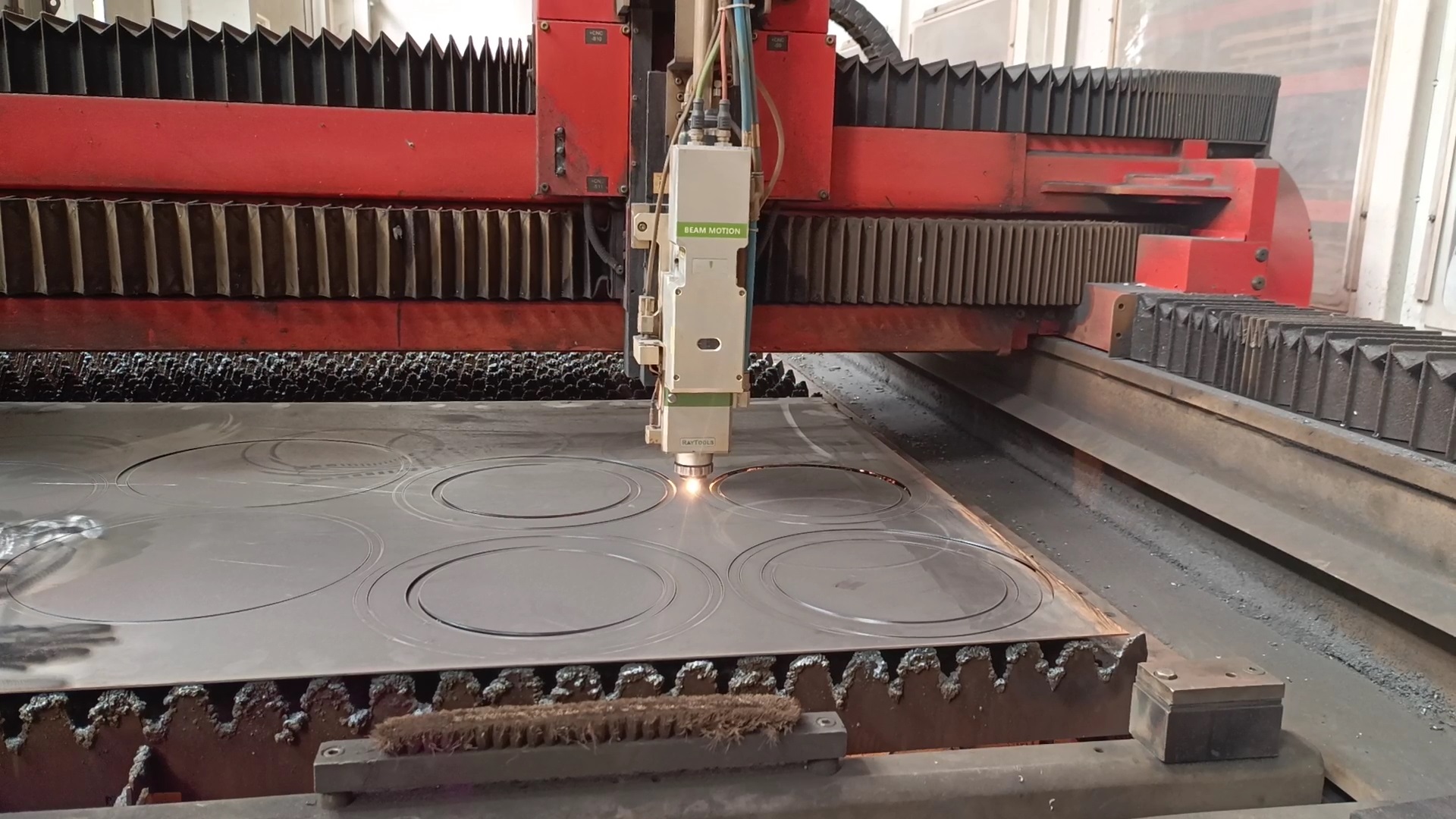

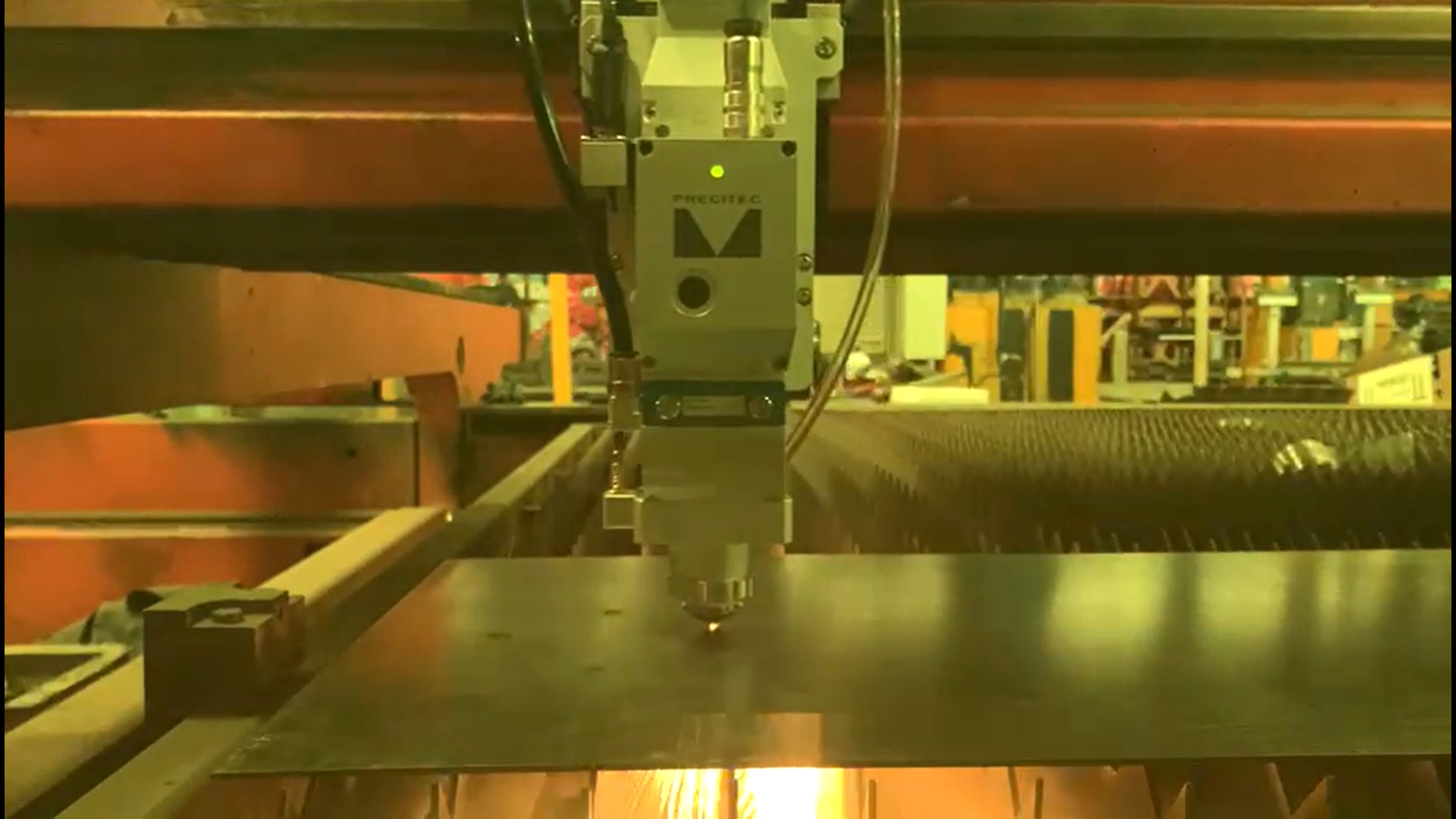

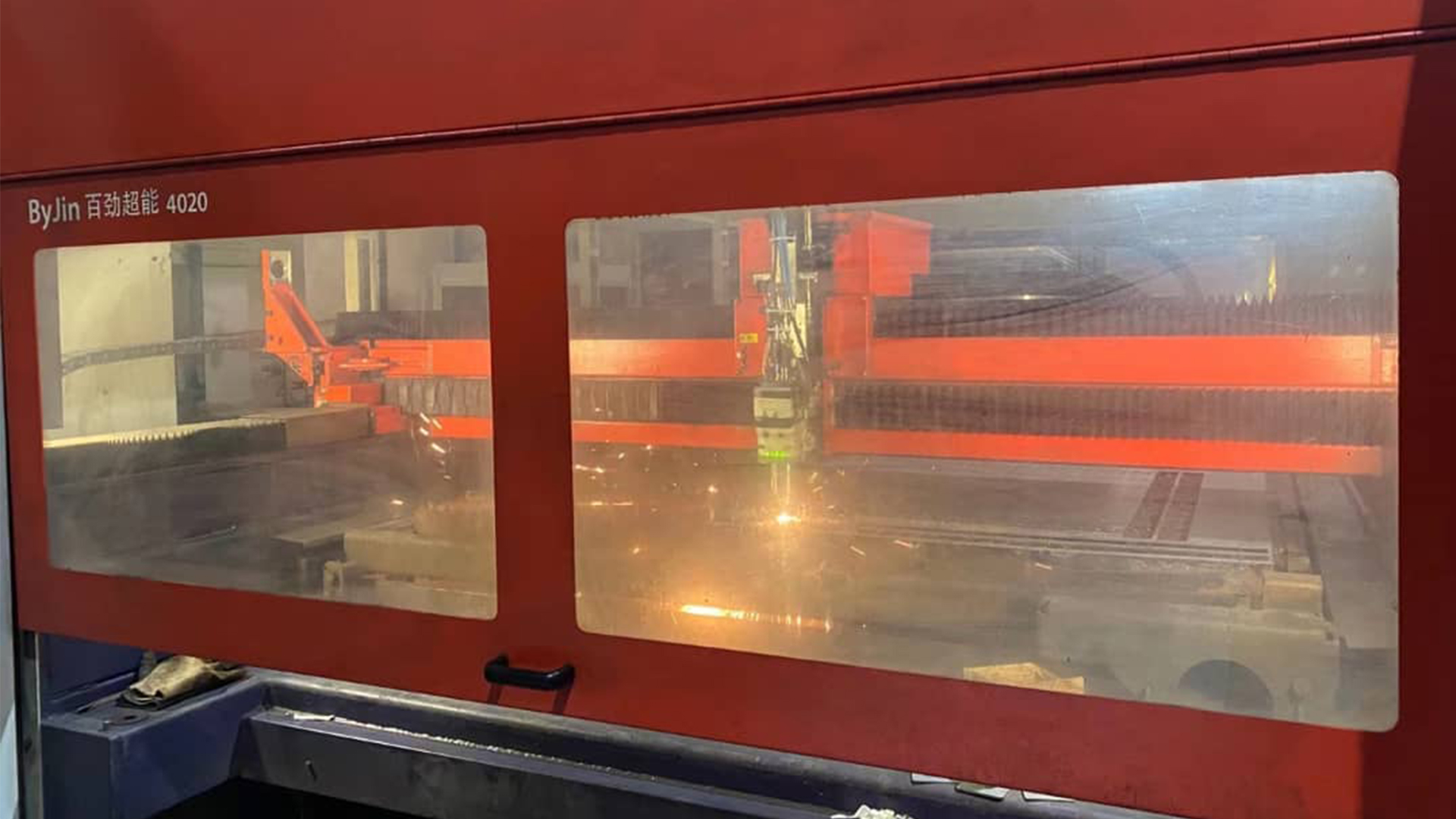

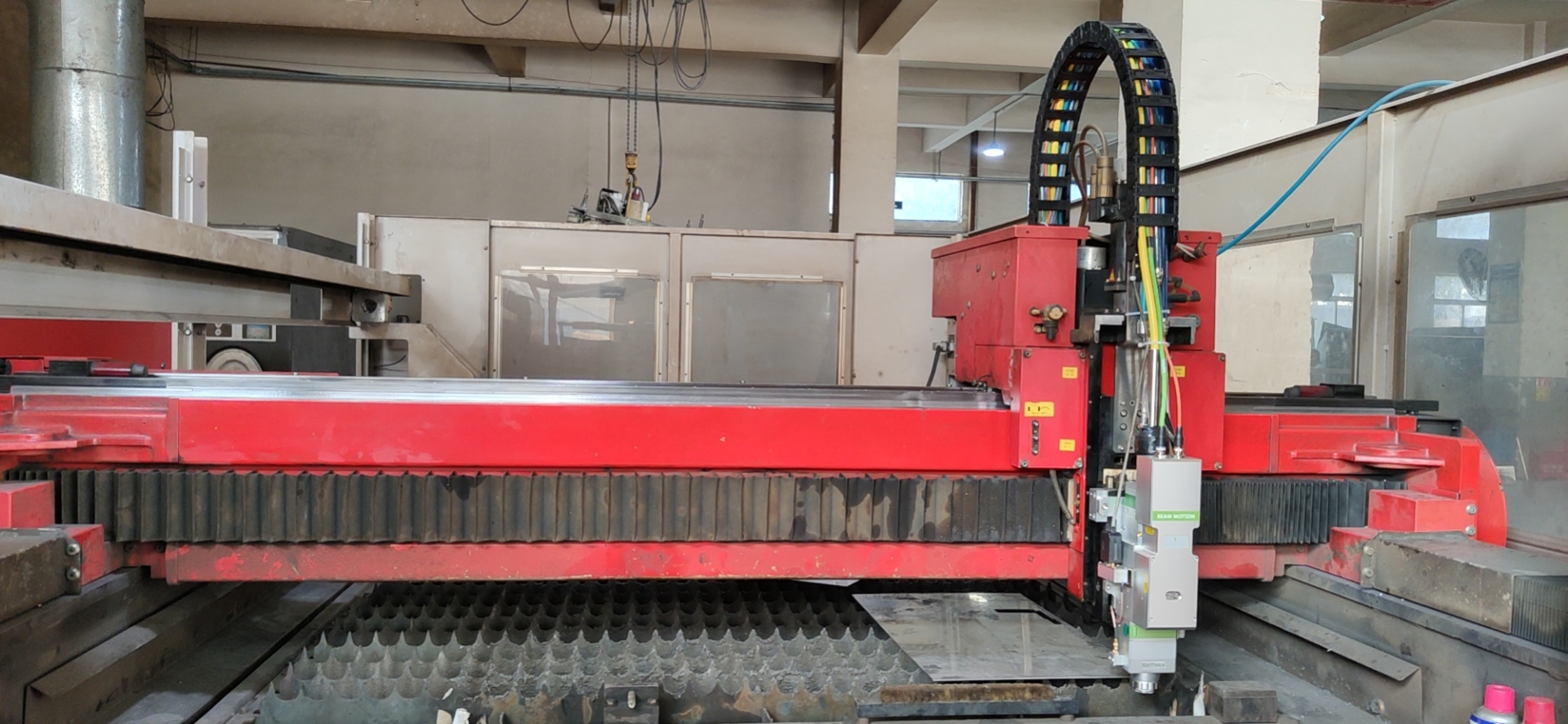

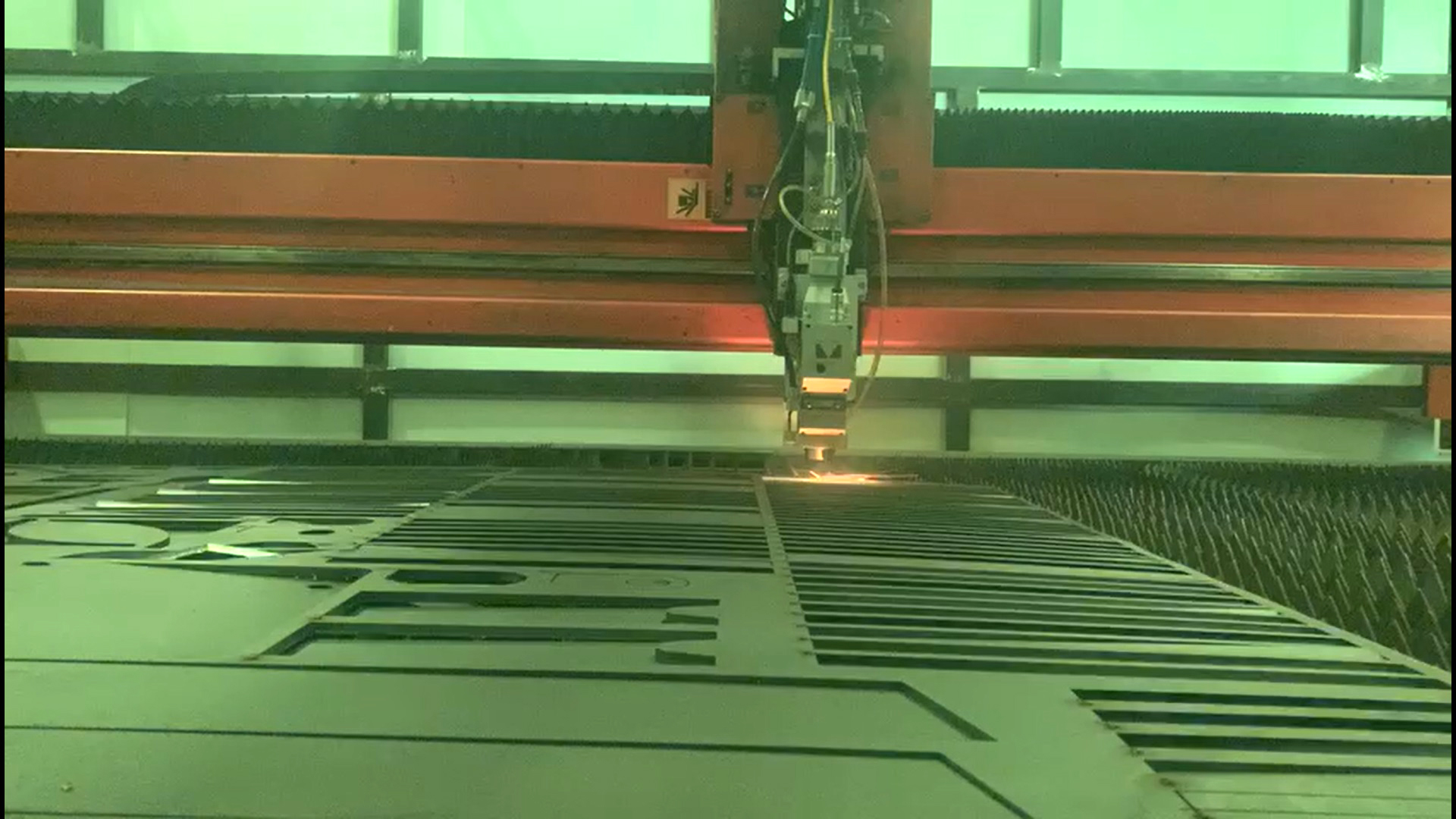

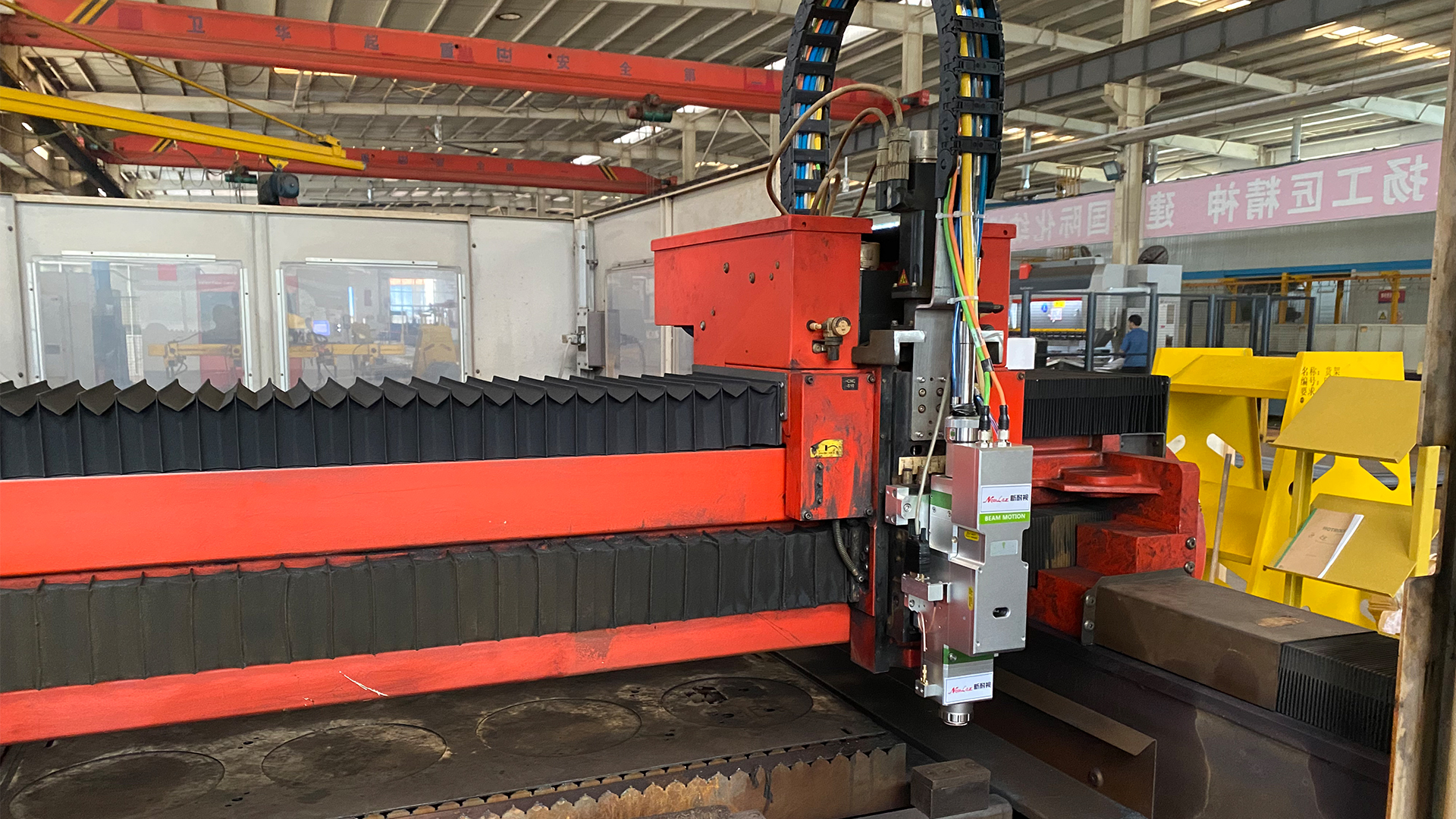

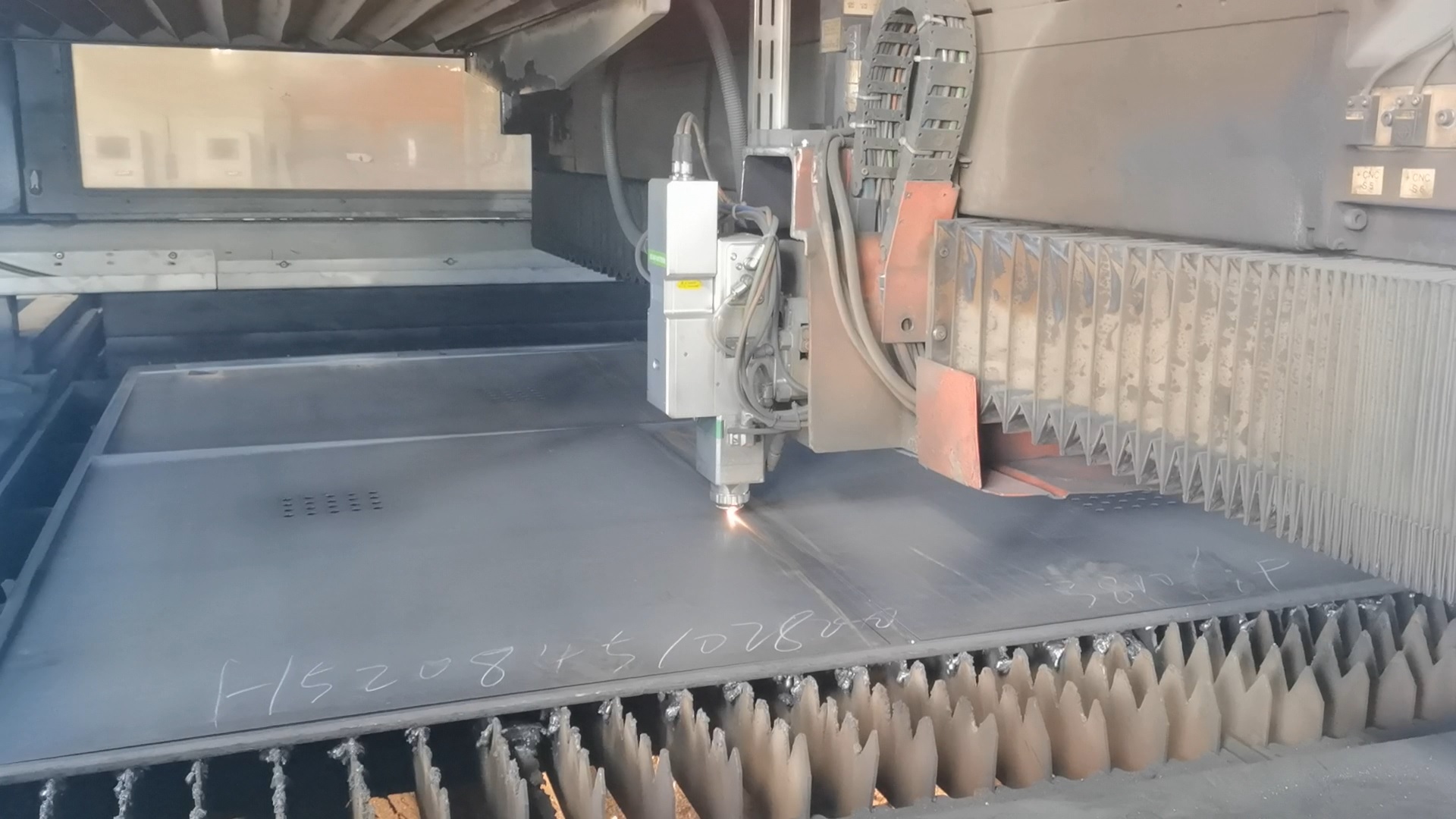

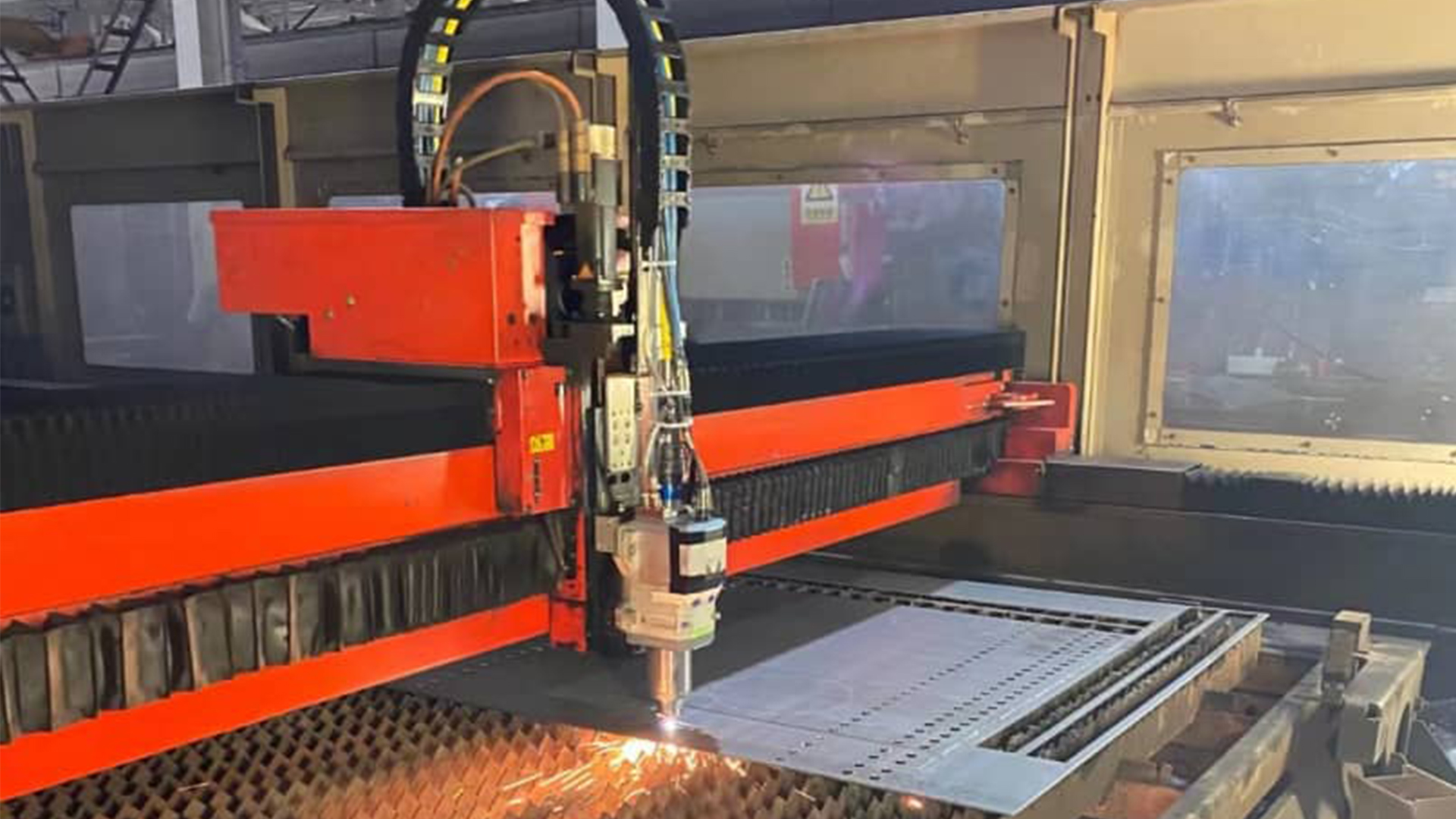

Retrofit Projects Gallery
