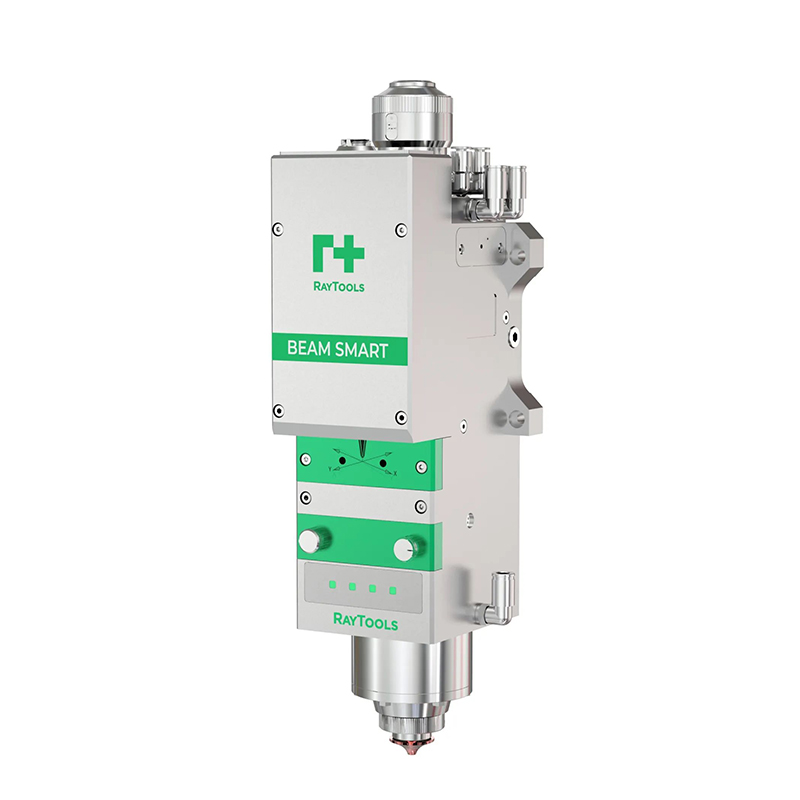

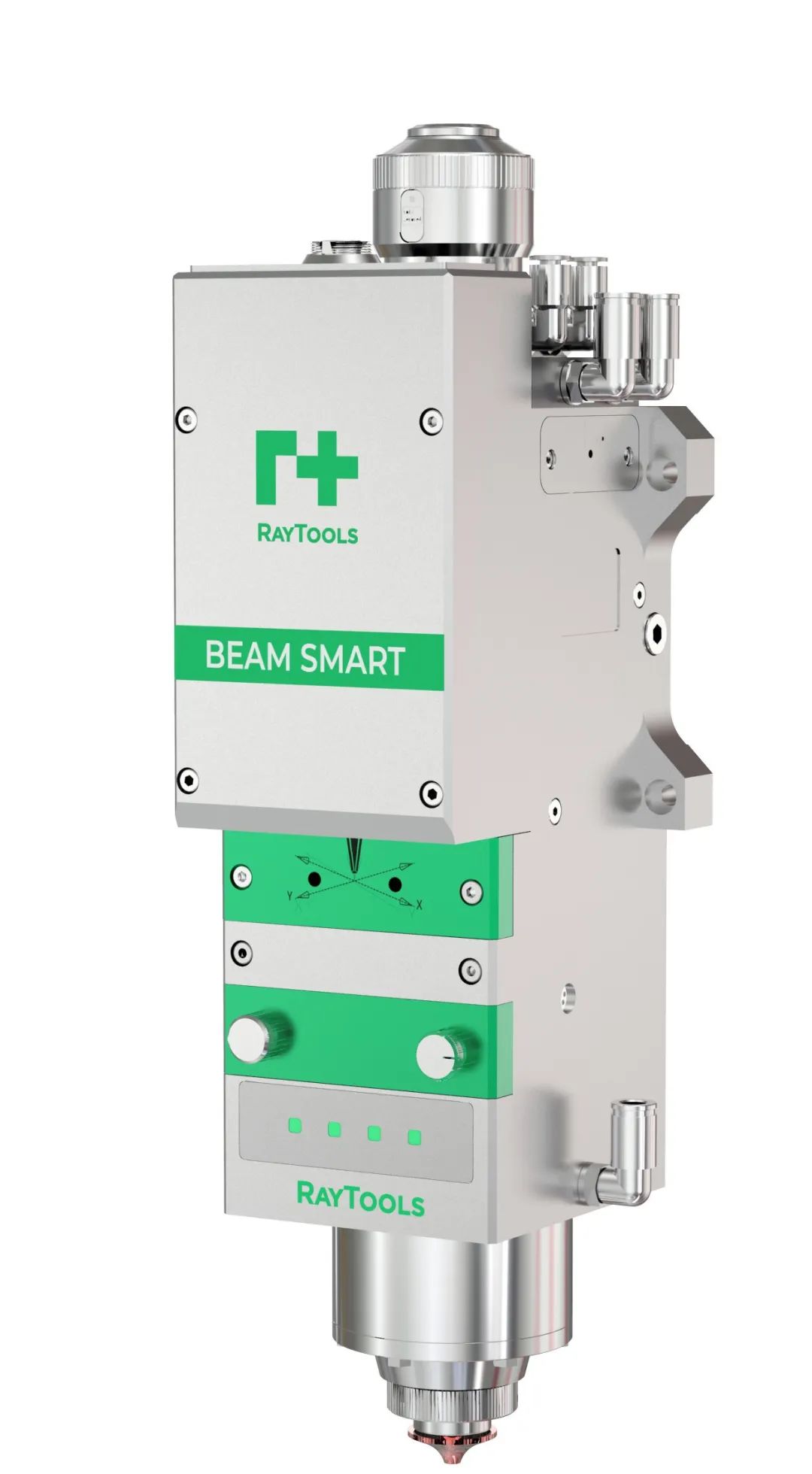

Raytools BS06K Laser Cutting Head

Raytools BS06K, high power automatic focusing intelligent laser cutting head, can replace Precitec Procutter ECO and Lightcutter ECO. Its focusing adjust method is same as Precitec and can achieve real-time monitoring and feedback during processing. Excellent optics and airflow design help to improve cutting quality and efficiency.

Application

Flat cutting

Document
Raytools BS06K Laser Cutting Head

Features

1. It can replace Precitec laser cutting head Procutter ECO and Lightcutter ECO

2. Customized tracking solution, seamless replace Raytools cutting head to Precitec cutting head.

3. Method of adjusting focus is same as Precitec. Support a variety of interfaces – analog and pulse to control the focus unit, and the user can realize continuous and rapid focus position adjustment through program setting.

4. With monitoring software(PC version and App version), real-time monitoring data can be read on mobile terminal and CNC system.

5. Inside sensors can provide real-time feedback of parameters in the processing, such as the temperature of the protective lens and the focusing lens, the temperature and humidity of the cavity, the pressure of the cavity, the pressure of the cutting gas, etc.

Specification

Model No.:BS06K
Wavelength:1080nm
Interface:QBH,QD,Q+,G5
Power:6000W
Collimation Length:100mm
Focus Length:150mm, 200mm
NA value:0.13
Focusing range-35mm-+25mm
Focusing speed range:≤200mm/s
Focusing acceleration:≤10m/s²
Focusing accuracy0.01mm
Gas pressure:≤30bar
Voltage:24V±10%, max 4A
Temperature:5℃-55℃
Humidity:30%-95%
Weight:6.5kgs-7kgs
